Polymer Reduction: More Hydropath, Less Polymer

Aug. 2, 2016
Somersworth, N.H., wastewater treatment plant reduces polymer use by more than 25%

About the author: Douglas Lee Miller, P.E., BCEE, is a consultant for Douglas L. Miller Consulting LLC. Miller can be reached at [email protected].


The Somersworth, N.H., Wastewater Treatment Plant serves a city with a population of approximately 11,800 people. A city-wide collection system delivers the citizens’ and local industry’s wastewater to be treated at the 2.4-million-gpd facility, which utilizes a GEA Westfalia Separator, model CB 505-00-32 centrifuge in its sludge dewatering process. The plant’s management team agreed to evaluate Hydropath technology’s ability to reduce polymer usage in this process.

Struvite Control Leads to Polymer Reduction Investigation

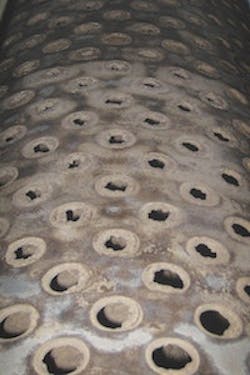

HydroFLOW devices have been installed in multiple wastewater plants as a means to control struvite accumulation. In the fall of 2013, equipment was installed at the Orlando, Fla., Water Conserv II Water Reclamation Facility for struvite removal and prevention purposes. After five months, the results showed significant reduction of struvite buildup and a 20% reduction in polymer use. This polymer reduction discovery led to further investigation of the phenomenon.

Technology Background

HydroFLOW USA is based in Redmond, Wash. The company is the sole U.S. distributor of the HydroFLOW water conditioning device that is powered by the patented Hydropath technology. The HydroFLOW device induces an electric signal of ±150kHz in the liquid inside any pipe on which it is installed. A specialized transducer connected to a ring of ferrites performs the electric induction.

The technology was developed in England more than 20 years ago for calcium carbonate scale removal and prevention in domestic water heating applications; however, the use of Hydropath technology is not limited to residential systems. Various device configurations are being successfully applied in the following water use sectors: Power generation, commercial, industrial, hospitality, municipal, mining, oil and gas, maritime, agriculture, food service and aquaculture.

Expansion plans include application development in the wastewater sector, with a focus on enhancement of existing processes and the reduction of struvite and other scale forming issues.

The Trial

In November 2015, HydroFLOW USA staff installed two HydroFLOW 160i units on the 6-in. sludge piping feeding the centrifuge. One unit was placed approximately 50 ft prior to the centrifuge, just after the thickened waste activated sludge pump, and the other unit was placed 5 ft prior to the feed tube just before the centrifuge. Both units were installed without process downtime as they are fitted around existing piping and do not require plumbing modifications. The units use 120 VAC and draw less than 1 Amp, which is similar to the power consumed by a 60W light bulb.

The centrate quality in Somersworth typically averages about 500 mg TSS (total suspended solids)/L, but rarely above 1,000 mg TSS/L. Surpassing the 1,000 mg TSS/L threshold could affect the plant treatment capacity. Success for this facility meant reducing polymer usage and producing dryer cake without negatively impacting the centrate quality. The trial protocol dictated an incremental reduction of polymer dosing while monitoring the cake solids. If the cake became too wet—below 20% Total Solids (TS)—polymer reduction would cease.

Over a span of six weeks, a total of six testing sequences using one or both of the HydroFLOW devices reduced polymer use from an average of 25.5 to 19.1 lb per ton (25.1% reduction), increased cake solids by up to 3% TS and kept centrate quality within testing limits of less than 1,000 mg TSS/L.


Success for this facility was determined by the reduction in polymer usage and production of dryer cake, without negatively impacting the centrate quality. These goals were achieved beyond expectations with a projected payback period of less than three years. During the product evaluation period, the devices proved to be an effective method of reducing polymer usage in wastewater dewatering systems.

Download: Here
