Shifting Sands

Aug. 16, 2018
Filtration media help NS facility improve efficiency

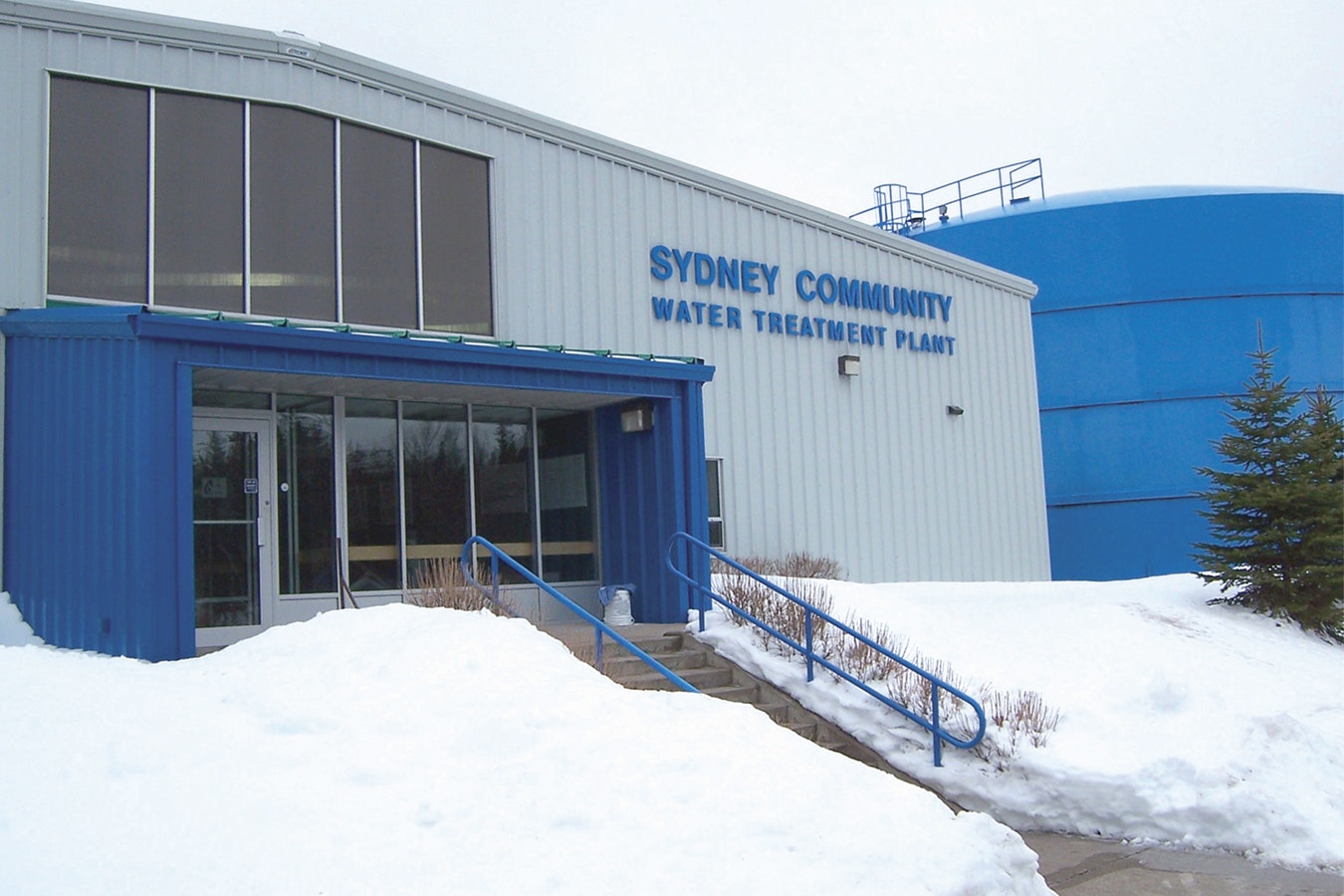

Cape Breton Regional Municipality (CBRM)—located in Sydney, Nova Scotia—has four 10-ft diameter, 18.5-ft straight shell horizontal Hungerford & Terry GreensandPlus filters that treat 1.8 million imperial gpd. The water source is a well containing iron and manganese; the design water analysis has 0.2 mg/L iron and 0.35 mg/L manganese. The filters are designed to use the catalytic oxidation process with chlorine added prior to the filters, followed by a reaction tank to allow added contact time for the chlorine.

"The water treatment results have met our expectations for iron and manganese removal," said Mike MacKeigan, utility manager for CBRM.

Over a five-year period of operation, the length of run between backwashes was gradually getting shorter. Investigation determined that the reduced run length was caused by a breakdown of the manganese greensand media. After testing, it was determined that the low silica level in the raw water contributed to this breakdown. A feed of sodium aluminate was instituted to help alleviate this problem. Sodium aluminate was fed at a rate of 0.2 mg/L to stabilize the media and enable the CBRM to handle high summer demand.

A new medium, GreensandPlus, was obtained from the Inversand Co. This medium is more rugged than manganese greensand, but it has identical operating characteristics and does not require sodium aluminate to prevent breakdown.

On the advice of Hungerford & Terry water treatment specialists, a pilot plant was sent to CBRM for operation using the same feed as the full-scale units. After chlorine addition and reaction time, a 3.1 gpm flow was sent to the pilot plant.

The pilot plant measured 9 in. ID with a V2 sq ft surface area. The filter bed consisted of 18 in. of 0.6 to 0.8 mm effective size anthracite and 18 in. of GreensandPlus. After conditioning with potassium permanganate, the pilot plant was ready for operation. The chlorine feed served to oxidize the iron and manganese in the feed water so that it would be filtered out in the media.

Greater capacity

The manganese oxide coating on the GreensandPlus would oxidize soluble manganese. The free chlorine in the feed water would then oxidize the coating, which had temporarily been reduced. The limiting factor of the pilot plant was pressure drop across the bed. Feed water from CBRM was limited in pressure and flow because it was fed to the pilot plant through a garden hose.

The pilot plant operated at flow rates from 4.4 to 6.2 gpm per sq ft, and run lengths between backwashes of 120 to 200 hours were experienced. Influent manganese was 0.3 to 0.33 mg/L, while iron varied between 0.045 and 0.09 mg/L. With seven runs complete, an average loading of 1,200 grains per sq ft of filter area was obtained. Manganese greensand is expected to have a capacity of 500 to 700 grains per square ft of filter area.

The normal pressure-drop end point for the full-scale plant and the pilot plant was 10 psi. In an attempt to extend the run, the plant was operated on a 334 hour run with a pressure drop of 17.9 psi at the end of the run. The pilot plant was still producing water with less than 0.005 mg/L manganese and 0.001mg/L iron in the effluent. The only reason for terminating the run was a drop-off in flow rate due to the high-pressure drop across the filter bed. After backwashing, there was no sign of damage to the media, and the pressure drop at the start of the next run was consistent with that of a clean bed.

“By reducing differential pressures across the filter bed and with a life expectancy of up to 20 years with the GreensandPlus filtration media, Cape Breton should save a considerable amount of money over the ordinary manganese greensand that has required replacement and filter rebedding every three to five years of in-service operation,” said MacKeigan.

Lower average

During the pilot testing, the water treated by the pilot plant consistently averaged less than 0.01 mg/L manganese and less than 0.01 mg/L iron. The effluent-free chlorine averaged between 1.5 and 1.8 mg/L, as determined by the chlorine feed to the full-scale plant and required for the distribution system.

The results of the pilot plant indicated that GreensandPlus filter media could treat the water at the Cape Breton Regional Municipality filter plant without breakdown due to the low silica level in the water. It can also be operated to higher pressure drops and longer filter runs without any detrimental effects. It demonstrated that while being operated for longer periods of time to higher pressure drops, it could still produce extremely high-quality water.

After the successful pilot tests were completed, Cape Breton began retrofitting all of its water treatment beds with the engineering assistance of Hungerford & Terry using GreensandPlus.

“Based on the pilot test report and the overall project evaluation from Dillon Consulting of Sydney, we expect very positive results from the GreensandPlus media throughout the duration of the next 10 to 20 years,” said MacKeigan.

About the Author

Kenneth Sayell
